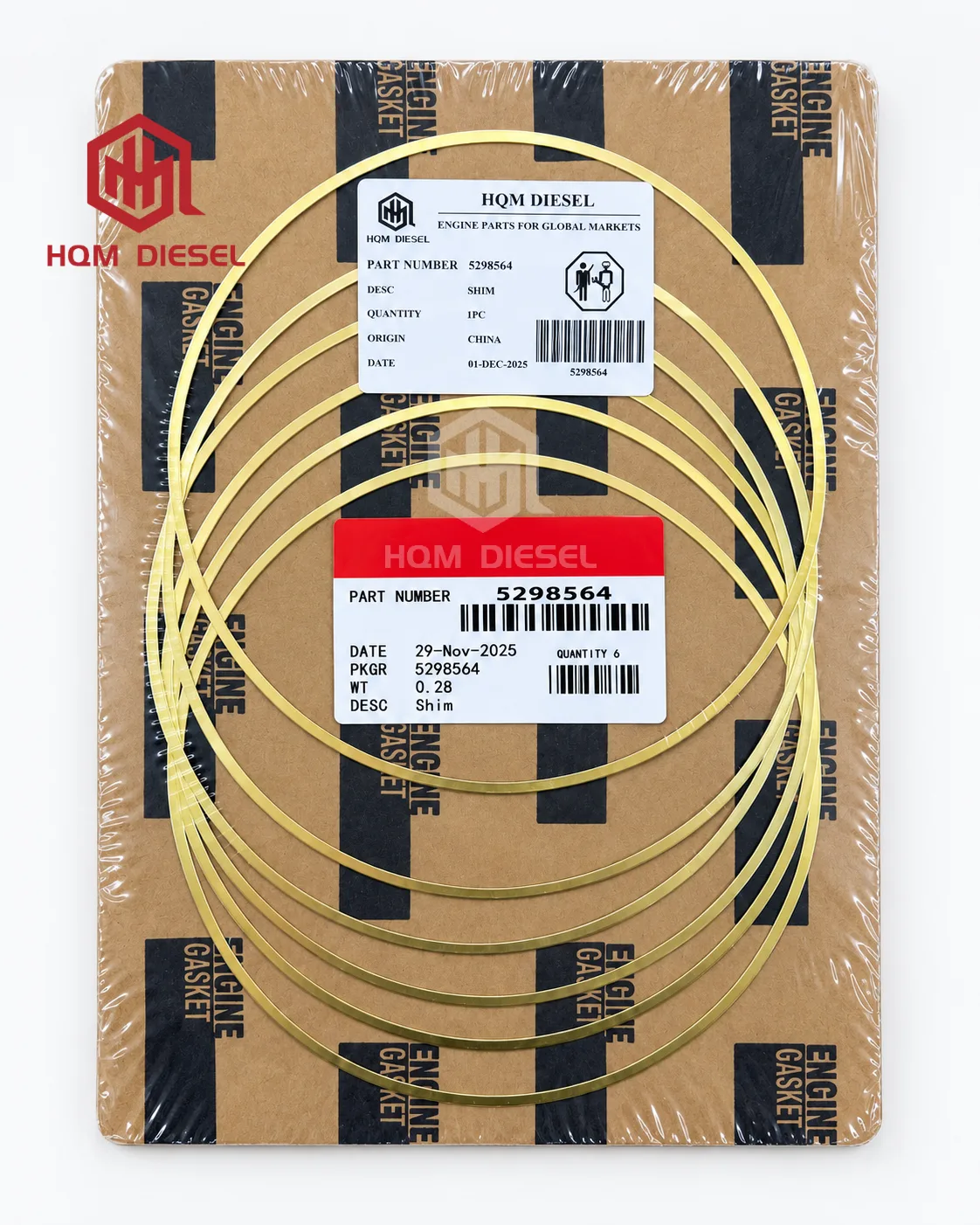

5298564 Cylinder Liner Shim 0.020" for Cummins ISX/QSX

The 5298564 Cylinder Liner Shim is a new aftermarket replacement component designed for selected Cummins ISX and QSX engine applications.

With a thickness of 0.020 inch, this liner shim is used during cylinder block and liner service to help achieve the required cylinder liner installation height and fitment.

It is suitable for engine overhaul, cylinder liner replacement and heavy-duty diesel engine repair applications.

Key Features

• New aftermarket replacement liner shim
• 0.020-inch thickness
• Suitable for selected Cummins ISX/QSX applications
• Designed for cylinder liner installation and engine repair
• Suitable for professional engine overhaul applications
• Inspected before shipment
• Secure export packaging
• 12-month warranty

Product Information

• Part Number: 5298564
• Brand: HQM DIESEL
• Product Type: Cylinder Liner Shim
• Engine Application: Cummins ISX / QSX
• Thickness: 0.020 Inch
• Condition: New (Aftermarket Replacement)
• MOQ: 1 Piece
• Warranty: 12 Months

Product Application

The 5298564 liner shim is designed for use during cylinder liner and engine block service on selected Cummins ISX and QSX engine configurations.

It may be used when servicing or replacing cylinder liners and when correcting liner installation height according to the required engine repair specifications.

Correct liner height is important for proper cylinder sealing and reliable engine operation.

Compatibility Confirmation

Before ordering, please provide the following information:

• Original part number
• Engine model
• Engine serial number, if available
• CPL number, if available
• Required shim thickness
• Quantity required
• Clear photos of the original part, if available

Different engine configurations and repair conditions may require different liner shim thicknesses.

Please confirm the required part number and thickness before placing the order.

Quality Inspection

Each cylinder liner shim is inspected before shipment.

Inspection may include:

• Product dimensions
• Thickness
• Surface condition
• Product identification
• Edge condition
• Packaging condition

Actual product photos can be provided before shipment upon request.

Installation Information

Professional engine repair and installation are recommended.

Before installing the liner shim, the cylinder block, counterbore and liner installation area should be carefully inspected and cleaned.

The technician should verify:

• Cylinder liner condition
• Counterbore condition
• Liner protrusion
• Required shim thickness
• Contact surfaces
• Cylinder block condition

The correct liner height should be measured according to the appropriate engine repair procedure before final assembly.

Using an incorrect shim thickness may result in improper liner height and could affect cylinder sealing or engine reliability.

Warranty

A 12-month warranty is available according to the agreed sales terms.

The warranty does not normally cover damage caused by:

• Incorrect installation
• Incorrect shim thickness selection
• Improper engine machining
• Damaged cylinder block or counterbore
• Improper assembly
• Application mismatch

Ordering Information

For an accurate quotation, please provide:

• Required part number
• Required quantity
• Engine model
• Engine serial number, if available
• Required shim thickness
• Delivery country and postal code

Contact HQM DIESEL for pricing, availability and shipping options.
